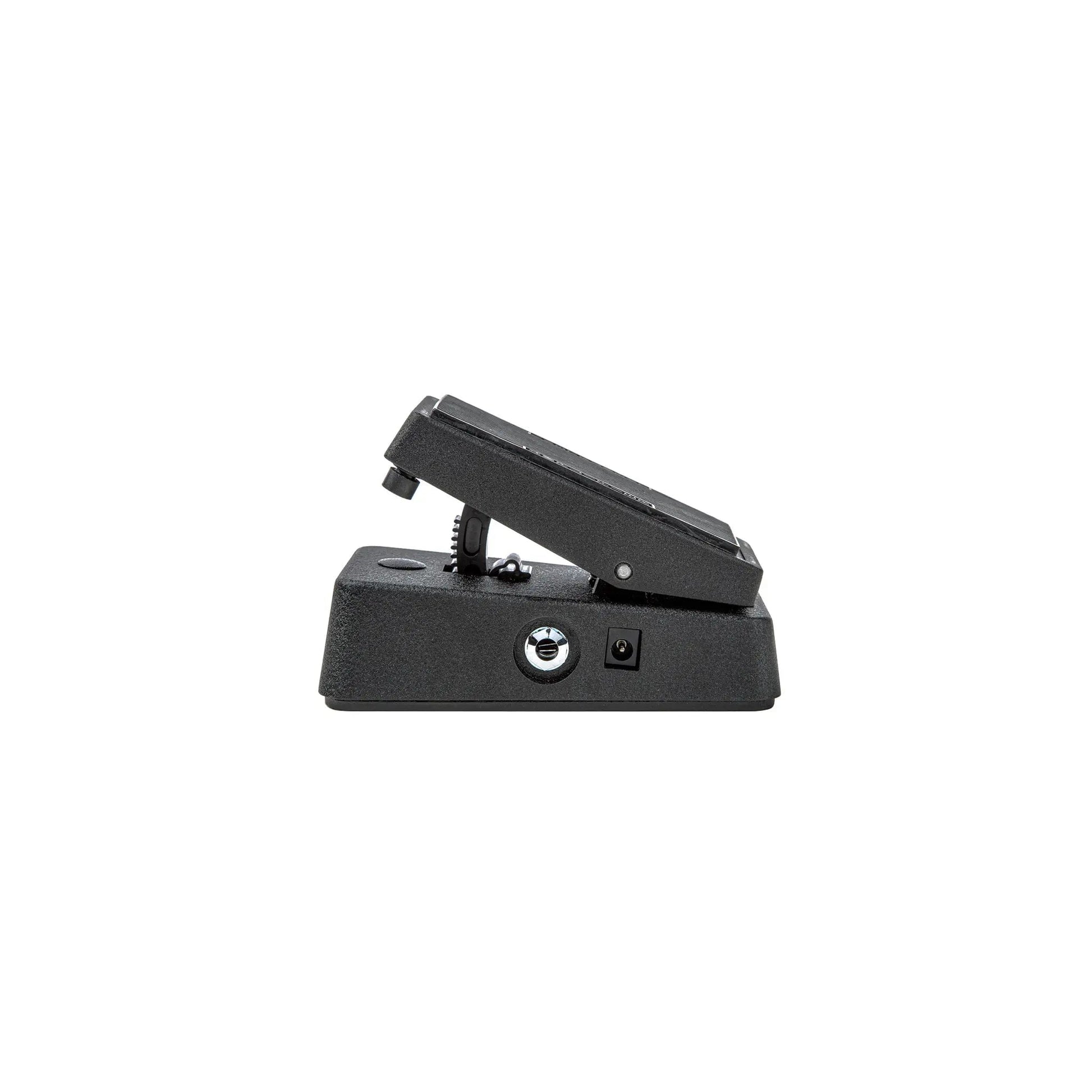

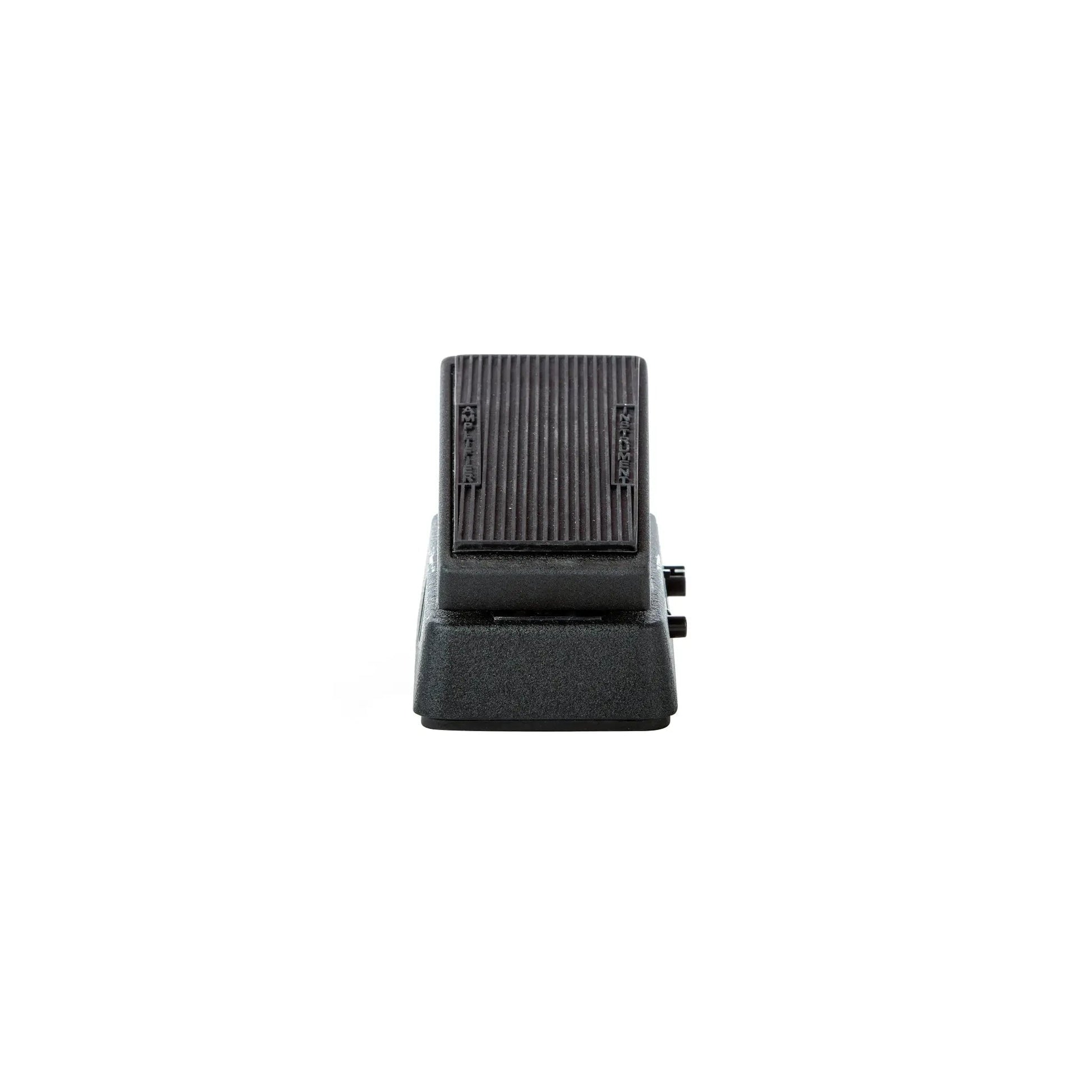

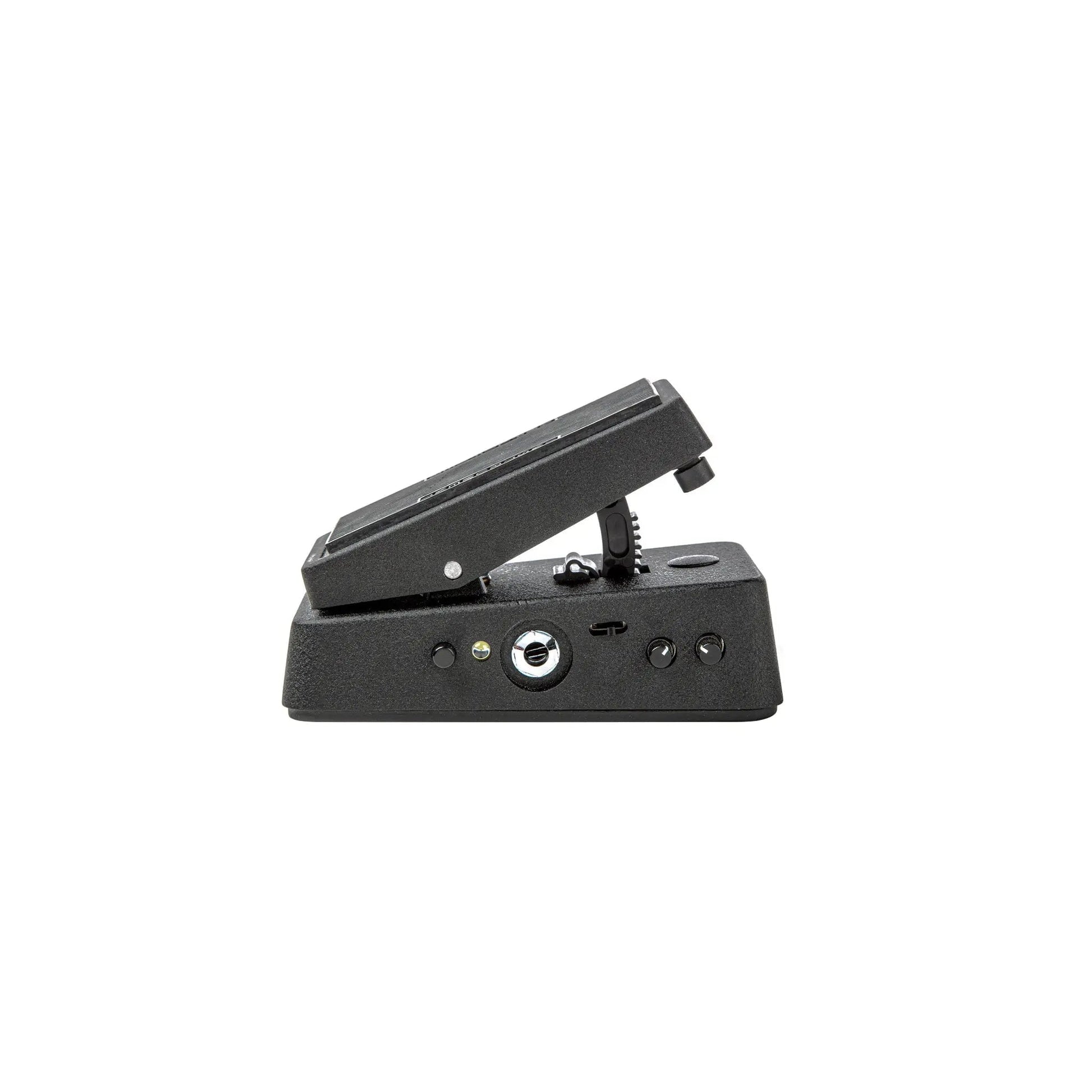

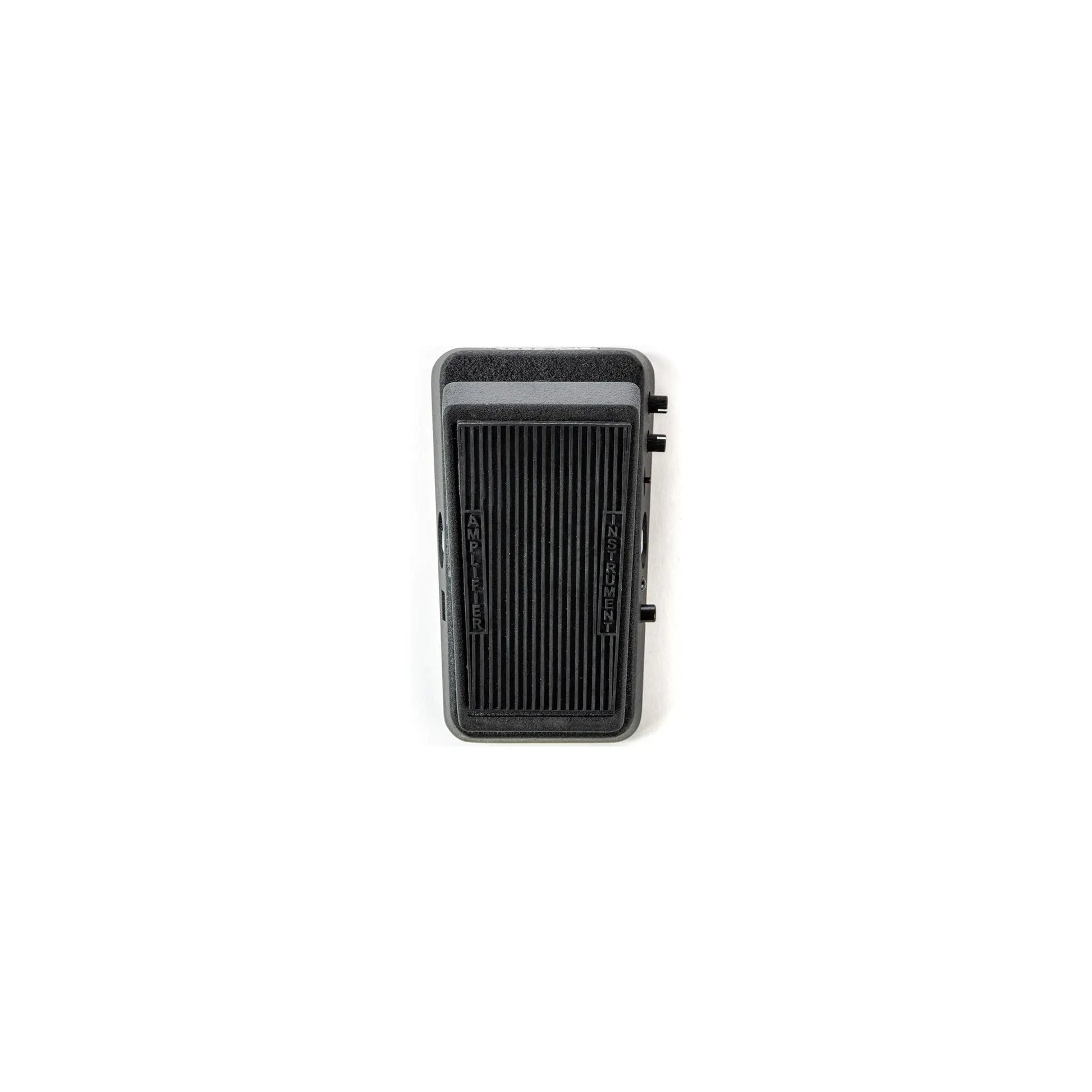

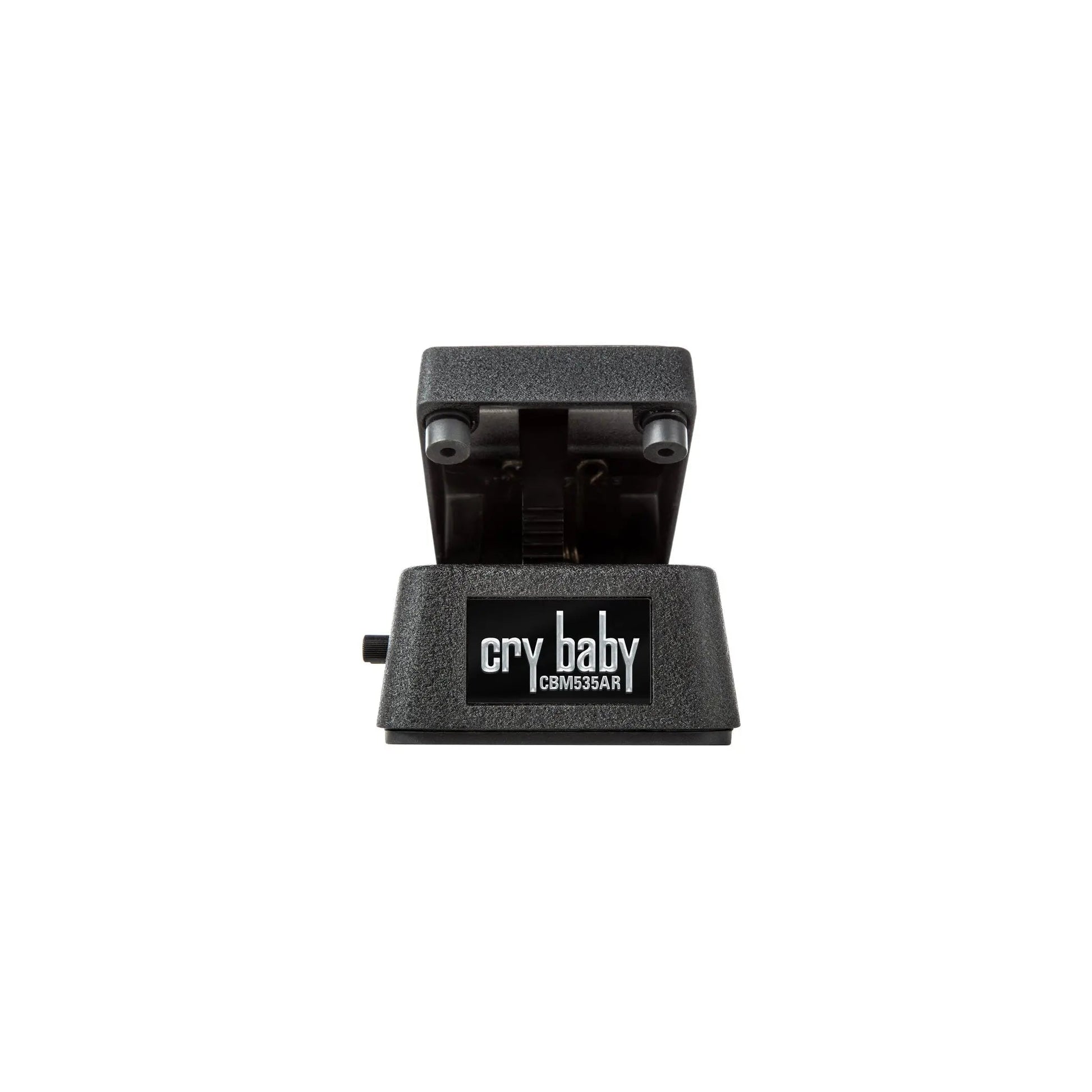

Dunlop CRY BABY® MINI 535Q WAH

The 535Q Cry Baby Multi-Wah features a six-position Range Selector, a Variable Q control, and a switchable boost circuit so you can dial in the ultimate Wah tone.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

THE LONG STORY

Dunlop engineers worked closely with the world's top guitar players to design the 535Q Cry Baby Multi-Wah, a pedal that allows you to fine-tune your wah sound and make it your own.

This the Swiss Army knife of wah pedals. Its six-position Range Selector control allows you to choose from six different frequency ranges, each position based on the unique tonal characteristics of our most prized wah specimens. The Variable Q control allows you to take the 535Q's response from narrow and sharp to broad and subtle with the twist of a control. Once you've got your sound, make sure it gets heard with the switchable boost—adjustable up to +18dB—that can create endless sustain on any note.

The 535Q provides control over the most important wah parameters so you can create your ultimate wah tone.

POWER

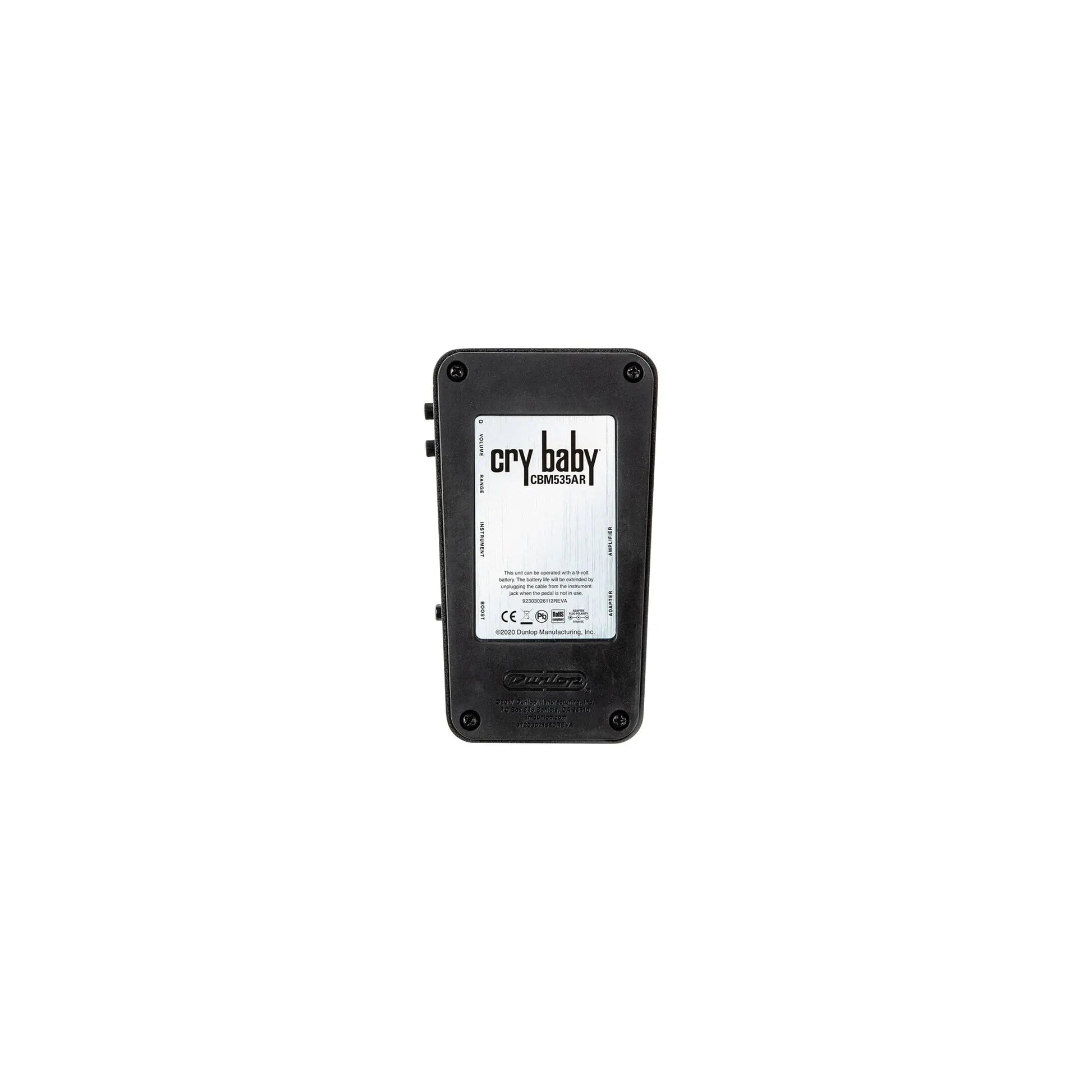

The Cry Baby® Mini 535Q Wah is powered by one 9-volt battery (remove bottom plate to install), the Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies.

OPERATION

1. Run an instrument cable from your guitar to the CBM535AR’s INSTRUMENT jack and another instrument cable from the CBM535AR’s AMPLIFIER jack into your amplifier’s
2. This pedal is bypassed (off) while your foot is off the To engage the wah effect, simply press the toe of the pedal down with your foot.
3. Use the RANGE SELECTOR switch to select one of four frequency See RANGE SELECTOR diagram.
4. Rotate the Q knob clockwise for a narrower bandpass to emphasize higher end harmonics or counterclockwise for a wider bandpass that emphasizes lower end
5. To increase the CBM535AR’s output, engage the BOOST switch and rotate the VOLUME knob clockwise to increase the amount of gain, up to 16dB, or counterclockwise to decrease
6. To increase effect ring-out time, remove bottom plate and rotate AUTO-RETURN DELAY pot counterclockwise (set to 12 o’clock by default). To decrease effect ring out time, rotate the control

  AUTO-RETURN DELAY POT (INTERNAL)

7. Rock your foot back and forth on the pedal to hear the vocal, expressive tones that the Cry Baby Wah is famous

 IMPEDANCE

NOISE FLOOR*

WAH RANGE SELECTOR

*A-weighted

**Q control at maximum clockwise, boost off
